RF Tube CO2 Fractional Laser

Model:RSF100

Advantages

This machine is RF tube fractional laser. Comparing with the Glass tube laser, the working life is much longer, and laser energy is more stable.

Product Details

The RF tube CO2 fractional laser machine works by creating micro-wounds in the skin, which stimulates the body's natural healing process and promotes the production of collagen and elastin. This leads to tighter, firmer skin, reduced fine lines and wrinkles, and improved skin tone and texture.

These advanced machines utilize fractional laser technology to deliver controlled beams of light into the skin, stimulating collagen production and promoting skin rejuvenation. With minimal downtime and impressive results, fractional laser treatments have become a popular choice for individuals seeking non-invasive yet powerful skincare solutions.

Parameters:

Model RSF100
Laser Mode Fractional CO2 Laser
Wavelength 10600nm
Pulse Power 30W
Pulse Radio Frequency 0.530W
Control Touching switch, microprocessor-controlled
Screen 8.4 inch color touch screen
Working Mode Continuous; Single pulse; Repeat pulse; Super pulse.
Scan Pattern Triangle/Square/Rectangle/Rhombus/Circle
Dot Quantity 400 dots at most
Working Mode Fractional; Normal; Vaginal
Scan modes Sequence scan or Random scan or maximum distance scan
Pulse Energy 10mj~200mj (every stepping:2mj)
Condenser Focus f=100mm
Beam Divergence Angle 0.3 mrad
Spot Size 0.12-1.25mm (Adjustable)
Radiation Time 0.1~1 ms
Interval Time 1-5000ms
Pulse Duration 0.1~10ms
Pulse Interval 1ms~100ms (every stepping:1mj)
Pulse Distance 0.1-2.6mm
Aiming Beam 635nm
Cooling System air cooling

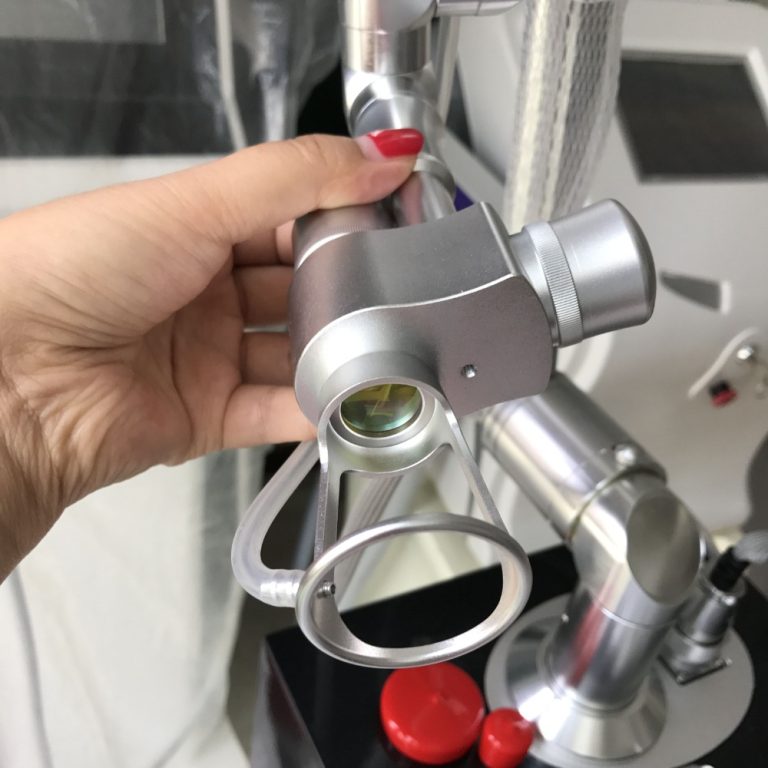

Beam Delivery Articulated arm with 7-joint with 360 degree roatating
Warning Up Time 5 min
Scan Area 10mmx10mm,20mmx20mm,30mmx30mm adjustable
Spot Density 36 spots / cm, 144spots / cm, 576spots / cm, with intermittent
loading
N.Weight(kg) 65kg
Size 64*51*122cm
Power Supply 220V/110V 50Hz/60Hz
